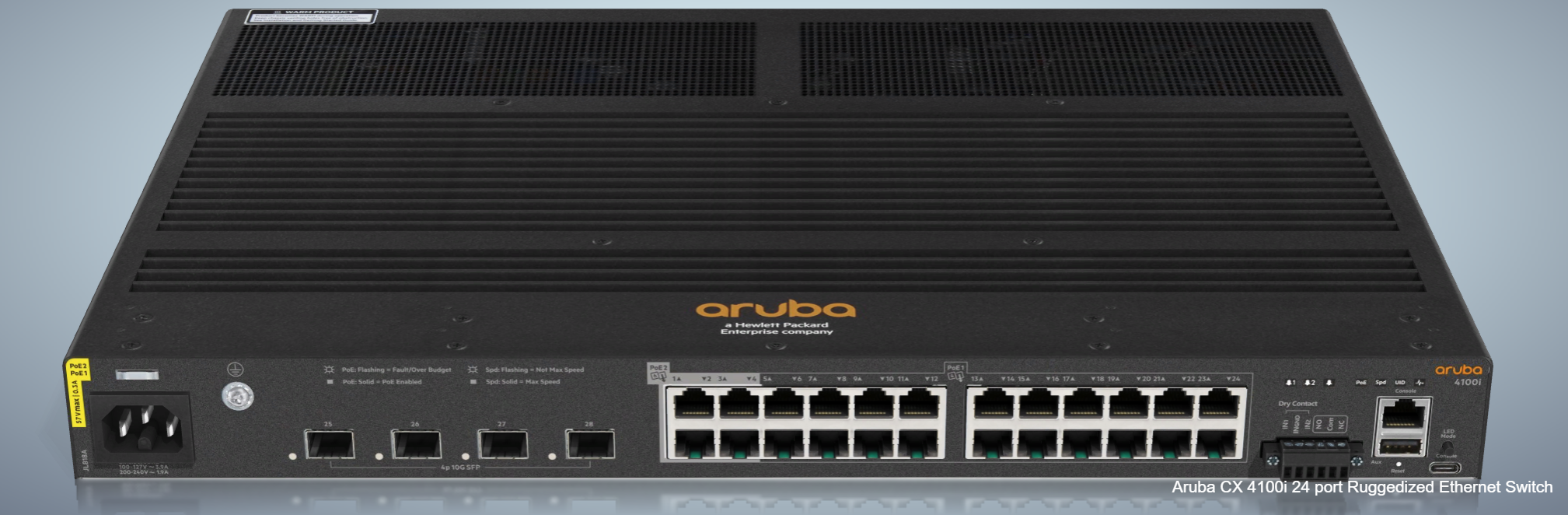

HPE Aruba Networking CX 4100i 24p 1GbE 20p Class4 POE and 4p Class6 PoE 4p SFP+ Switch
Differentiator20x ports 100M/1G BaseT Class 4 PoE ports supporting up to 30W per port
4x 1/10G SFP ports
Power consumptionIdle: 23W
100% Traffic Rate: 34W
100% Traffic Rate (w/ heater): 62W
Note: Heater will only turn on at extreme low temperature condition.
Heat dissipation117 BTU/hr at 230V - Room temperature (25°C)
Input voltage100V-240V
Ports4x ports 100M/1G BaseT Class 6 PoE ports supporting up to 60W per port
20x ports 100M/1G BaseT Class 4 PoE ports supporting up to 30W per port
4x 1G/10G SFP ports
1x USB-C Console Port
1x RJ45 Console
1x USB Type A Host port
1x Alarm socket
Latency1 Gbps: 1.585 μSec , 10 Gbps: 1.243 μSec
Average Latency (LIFO-64-bytes packets)
Routing/switching capacitySwitching: up to 128 Gbps
Routing throughput: Up to 95 Mpps
64 byte frames
Stacking capabilitiesNo stacking capability
Memory and processor4 GB DDR3
32 GB eMMC
Dual Core ARM Cortex A9 @ 1016 Mhz
Power supply nameFixed internal power supply (300W) 240W of PoE Power (no de-rating)
PoE capability240W no derating
Operating temperature-40°C to 60°C, 0m/s (-40°F to 140°F, 0 LFM)
-40°C to 70°C, 0.2m/s (-40°F to 158°F, 40 LFM)
-34°C to 75°C, 1m/s (-29.2°F to 167°F, 200 LFM)
Management featuresManagement flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software.
Warranty5-year warranty
See the warranty duration.
Detailed product descriptionThe HPE Aruba Networking CX 4100i Switch Series is a modern family of ruggedized Ethernet switches ideal for connecting IoT, access points, and user devices in harsh environments.
Weight6.47 kg (14.26 lbs)
DimensionsH:44 mm x W:444.5 mm x D:304.4 mm (H:1.73” x W:17.5” x D:12.0”)
Contact Us
Chat with us
Features
Specifications
Services
Options
Additional Resources
Features
Maximize your HPE Aruba Networking CX 4100i Switch Series
What's New
- Ruggedized Layer 2 switch series provides high performance, fully manageable, and reliable, Ethernet connectivity to IoT, access points, and user devices in harsh environments.
- Versatile form factors with fast 1/10 GbE uplinks deliver both 30W and 60W PoE to improve IoT power.
- Layer 2 feature set with static routing and no switch software licensing required.
h
DifferentiatorPopular 10-port Gig access switch with PoE+ with 10G uplinks.
This model has 8x 10/100/1000 PoE+ ports and 2x 10G / 1G SFP+ transceiver slots for uplink connectivity. PoE+ is supported with a power budget of 125 Watts.
Power consumption155W (maximum)
Heat dissipation58.6 BTU/hr (61.8 kJ/hr)
Input voltage90 - 264 VAC, rated
Ports(8) RJ-45 autosensing 10/100/1000 PoE+ ports
(2) SFP+ 1/10GbE ports
PHY-less
Latency1000 Mb Latency: < 3.8 µs
10 Gbps Latency: < 1.6 µs
Switching capacity56 Gbps
ThroughputUp to 41.7 Mpps
Memory and processorDual Core ARM Cortex A9 @ 1016 MHz
1 GB DDR3 SDRAM
Packet buffer size: 12.38 MB 4.5 MB Ingress/7.875 MB Egress
4 GB eMMC
PoE capability125W PoE+
Management featuresHPE Aruba Networking Management Software (AirWave)
Central Network Management
IMC - Intelligent Management Center
Command-line interface
Web browser
Configuration menu
SNMP manager
Telnet
RMON1
FTP
Out-of-band management (serial RS-232C or micro USB)
WarrantyLimited lifetime warranty.
See the warranty duration.
Detailed product descriptionThe HPE Aruba Networking 2930F Switch Series is designed for customers creating smart digital workplaces that are optimized for mobile users with an integrated wired and wireless approach
Weight2 kg (4.41 lb)
Dimensions4.39 x 25.4 x 25.4 cm (1.73 x 10 x 10 in)
DifferentiatorPopular 52-port Gig access switch with high-power 740 Watts PoE+ power.
This model has 48x 10/100/1000 PoE+ ports and 4x 1000/100 SFP transceiver slots for uplink connectivity. PoE+ is supported with a power budget of 740 Watts.
Power consumption980W (maximum)
Heat dissipation420.9 BTU/hr (444.1 kJ/hr)
Input voltage100–127/200–240 VAC, rated
Ports(48) RJ-45 autosensing 10/100/1000 PoE+ ports
(4) SFP
Latency1000 Mb Latency: < 3.8 µs
10 Gbps Latency: < 1.6 µs
Switching capacity176 Gbps
ThroughputUp to 112 Mpps
Memory and processorDual Core ARM Cortex A9 @ 1016 MHz
1 GB DDR3 SDRAM
Packet buffer size: 12.38 MB 4.5 MB Ingress/7.875 MB Egress
4 GB eMMC
PoE capability740W PoE+
Management featuresHPE Aruba Networking Management Software (AirWave)
Central Network Management
IMC - Intelligent Management Center
Command-line interface
Web browser
Configuration menu
SNMP manager
Telnet
RMON1
FTP
Out-of-band management (serial RS-232C or micro USB)
WarrantyLimited lifetime warranty.
See the warranty duration.
Detailed product descriptionThe HPE Aruba Networking 2930F Switch Series is designed for customers creating smart digital workplaces that are optimized for mobile users with an integrated wired and wireless approach
Weight4.79 kg (10.56 lb)
Dimensions4.39 x 44.25 x 32.42 cm (1.73 x 17.42 x 12.77 in)
