Aruba IOn 1430 26G 2SFP Sw
Aruba IOn 1430 26G 2SFP Sw

Aruba IOn 1430 26G 2SFP Sw (R8R50A)

Marka : HPE Aruba
Fiyat : $186.00  + KDV
KDV Dahil : ₺8.497,58

Not: Ürün Görselleri üretici web sitesinden alınmıştır,

Lütfen Stok Sorunuz ve Fiyat teklifi isteyiniz.

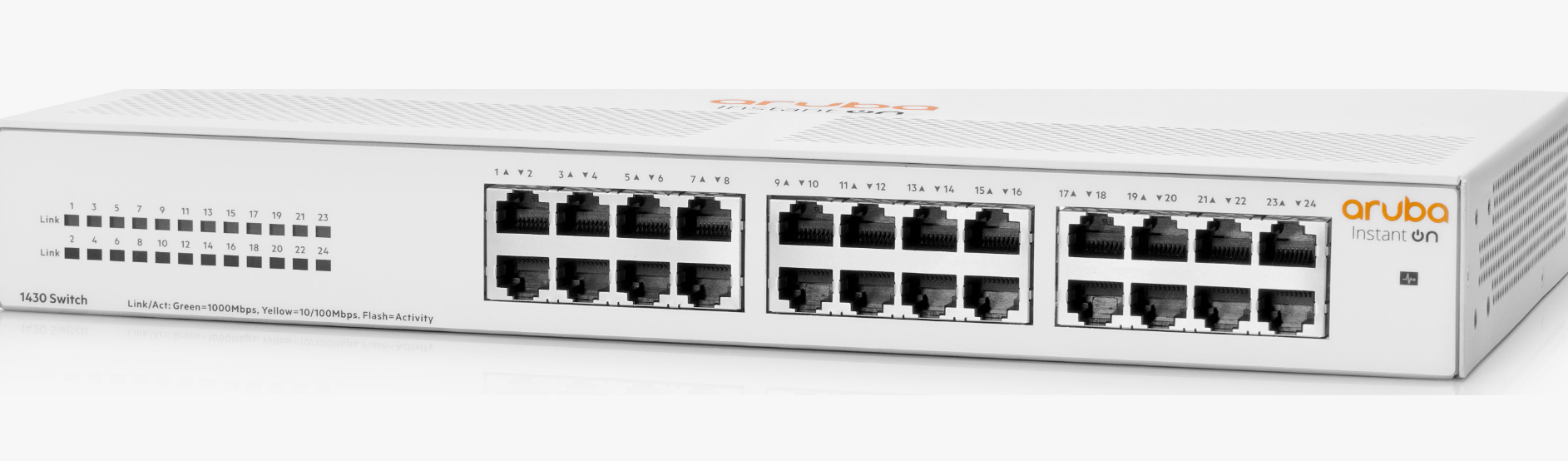

HPE Networking Instant On 1430 26G 2SFP Switch (R8R50A)



I/O ports and slots

26 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 2 SFP 1GbE ports



Physical Characteristics



Dimensions

225(d) x 388(w) x 44(h) mm



Weight

5.00 lb (2.27 kg)



Processor and Memory

32Mb Flash; Packet buffer size: 12.0 Mb



Performance





100 Mb latency

< 5.21 μSec



1000 Mb latency

> 2.90 μSec



Throughput (Mpps)

41.68 Mpps



Capacity

56 Gbps



MAC address table size

16384 entries



Reliability MTBF (years)

171.9



Environment



Operating temperature

32°F to 104°F (0°C to 40°C)



Operating relative humidity

15% to 95% @ 104°F (40°C) non-condensing



Nonoperating/ storage temperature

-40°F to 158°F (-40°C to 70°C) up to 15000 ft



Nonoperating/ storage relative humidity

15% to 95% @ 149°F (65°C) non-condensing



Altitude

up to 10,000 ft (3 km)



Acoustics

Fanless



Electrical Characteristics



Frequency

50Hz/60Hz



AC voltage

100-127VAC / 200- 240VAC



Current

0.4A / 0.3A



Maximum power rating

16.4W



Idle power

8W



PoE power



Power Supply

Internal Power Supply



Safety

·EN/IEC 60950- 1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013

·EN/IEC 62368-1, 2nd. & 3rd. Ed.

·UL 62368-1, 3rd. Ed.

·CAN/CSA C22.2 No. 62368-1, 3rd. Ed.

·EN/IEC 60825- 1:2018



Emissions

·EN 55032:2015/ CISPR 32, Class A

·FCC CFR 47 Part 15: 2018, Class A

·ICES-003, Class A

·VCCI-32, Class A

·CNS 13438, Class A

·KS C 9832, Class A

·AS/NZS CISPR 32, Class A



Immunity

BS/EN 55035, CISPR 35, KS C 9835



Generic

EN 55035, CISPR 35



EN

EN/IEC 61000-4-2



ESD

EN/IEC 61000-4-3



Radiated

EN/IEC 61000-4-4



EFT/Burst

EN/IEC 61000-4-5



Surge

EN/IEC 61000-4-6



Conducted

EN/IEC 61000-4-8



Power frequency magnetic field

EN/IEC 61000-4-11



Voltage dips and interruptions

EN/IEC 61000-3-2



Harmonics

EN /IEC 61000-3-3



Device Management

Unmanaged



Mounting



Mounting positions and supported racking

·Mounts in an EIA standard 19 in telco rack or equipment cabinet. 2-post rack kit included

·Supports table-top mounting

·Supports rack-mounting using the brackets provided

·Supports wall-mounting with ports facing either up or down using either the base surface mounting holes, or the brackets provided

·Supports under-table mounting using the brackets provided

·Must be mounted top surface up. To prevent possible impact to long-term reliability, product should not be mounted upside-down



Transceivers

·HPE Aruba Networking 1G SFP LC LX 10km SMF Transceiver (J4859D)

·HPE Networking Instant On 1G SFP LC SX 500m OM2 MMF Transceiver (R9D16A)






General Protocols



IEEE 802.3i

10 Mbps Ethernet



IEEE 802.3u

100Base-T Ethernet



IEEE 802.3z

1000 Mbps Ethernet



IEEE 802.3ab

1000Base-T



IEEE 802.3af

PoE1 (PoE models only)



IEEE 802.3at

PoE1 (PoE models only)



IEEE 802.3x

Flow Control



IEEE 802.3az

Energy Efficient Ethernet



RFC 2474

QoS diffserv (DSCP) mapping
